Tamper Evident 50 Micron Red No Residual Void Open PET Vinyl Security Label Material
Tamper Evident 50 Micron Red No Residual Void Open PET Vinyl Security Label Material

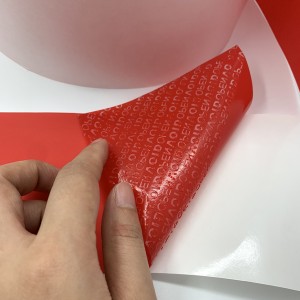

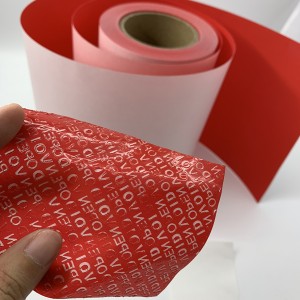

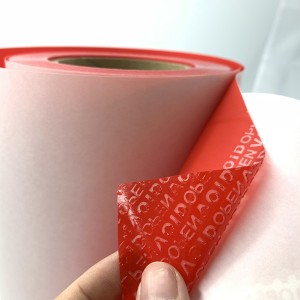

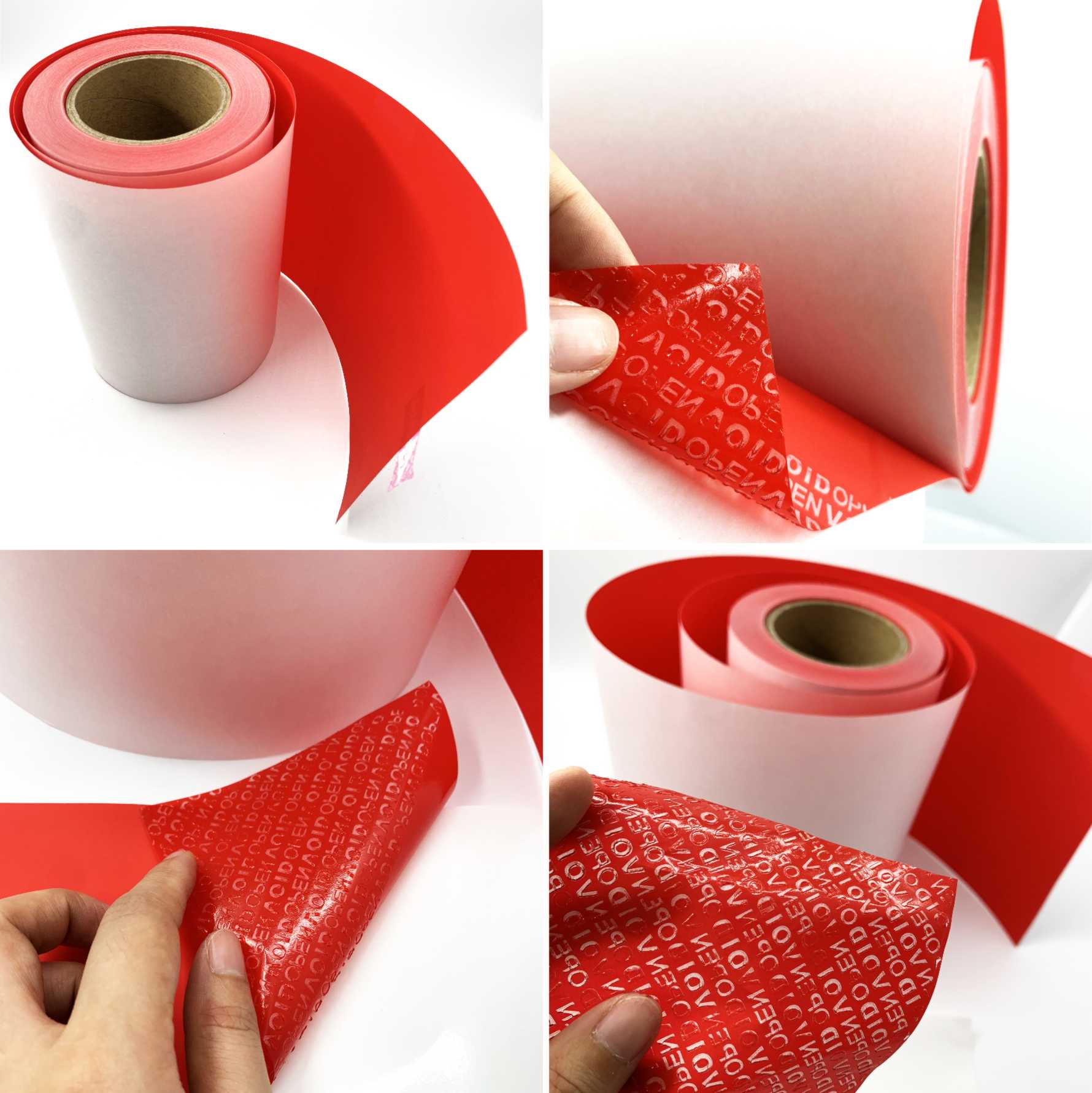

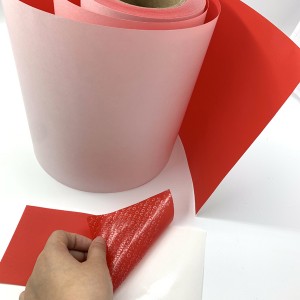

Non residue tamper evident VOID label material used printing warranty VOID/OPEN VOID label and securityseals, we made the topcoated on the material, it is good printing effect support UV inks printing, water based inks printing for polyester film, barcode printing,offset printing and various printing methods. Before removed the label, we can not see preset security message ” VOID ” or ” OPEN VOID “. After removed, non glue leave on the surface of objects, but the surface of the film show clear VOID/OPEN VOID text.We also can accept customized security message in any texts or patterns instead of ” VOID ” or ” OPEN VOID ” universal version.
Structure
Jacrown’s void material all have 6 layers:
1.Top coating (good printing effect)
2.Face-material (PET,25micron/36micron/50micron for choice)
3.Tamper Evident Message (stock type:VOID/OPEN VOID,custom type:any test or pattens)
4.Color (any colors available)
5.Release Liner (70g glasiness)
Technical Parameters
|
Jacrown® Non Transfer VOID OPEN Material |
||
| Facestock | Film Material: | PET/PE |
| Thickness: | 25micron/36micron/50micron | |
| Color: | Red/Blue/Orange/Yellow/Green/Black/White/Silver/Hologram/Custom | |
| Printability: | Excellent | |
| Adhesive | Material: | Acrylic/Removable |
| Thickness: | 46um ± 2um | |
| Coating Weight: | 82g±3g | |
| Initial Adhesion: | 5# ball | |
| Ultimate Adhesion: | 36hours↑ | |
| Peel Strength: | 4N↑ | |
| Suitable Temperature: | -20℃～40℃ | |
| Realease | Material: | Glassine |
| Thickness: | 70um±3um | |
| Basic Weight: | 80gsm | |
| Color: | Semi-transparent | |
| Smoothness | Excellent | |
| Roll Core Size | Diameter: | 7.6cm |
| Jumbo Roll Size | Width: | 53cm |
| Length: | 500m | |
Transfer Type Option
We have three transfer methods to choose from, depending on the use, choose the most suitable material for your product packaging to achieve the most perfect effect.
1. Total transfer type – commonly used for non-recyclable packaging, such as important document envelopes, pharmaceuticals, cosmetics and other products packaged in paper or carton.
2. Partial transfer type – commonly used in corona treated PE bags, glossy paper and high energy plastic package.
3. Non transfer type – commonly used for high energy surfaces such as glass and metal, car doors, aircraft doors, computers, cell phones and other electronics.
Colors Option
Hidden Message Option
Jacrow have “VOID” and “OPEN VOID” hidden message type of tamper evident void label materials stock usually, we also accept customized hidden message as per your requirements, it could be in any text and patterns, and the colors also could be in any what you want.
Main Applications
The Tamper evident void label has a wide range of applications and can be applied to any asset and brand that needs to be protected against tampering and theft, it is usually used in the following industries:
1. Transportation industry – mainly used on the outer packaging of products, including cartons, pallets, plastic boxes, metal drums and any packaging surface. Prevent shunting, tampering and being opened during transport.
2. Electronics industry – mainly used to make warranty stickers for electronics. Prevents electronics from opening themselves for repair during the warranty period.
3. Pharmaceutical industry – can be used for any pharmaceutical products, such as medical devices, pharmaceuticals and other medical supplies.
4. Government and Finance – Primarily used to prevent government and bank important documents and items from being opened in transit.
Advantages
1.10 years experience manufactuing and trading combo
2.7 days fast delivery have large stock
3.Customized solutions are available
4.Competitive price based on high quality
